KITCHEN BATHROOM FIELDUDS-65 SERIES
●Product Overview: Products are developed through environmentalbutyl materials, which is environmental protection.artistic, convenient to use, very good waterproofsealing performance.
●Application: Mainly used in kitchen, toiletfor moisture-proof and mildew-proof, corneredge, caulking between door/window frameand wall; leaking stoppage, sink installationof kitchen and bathroom.

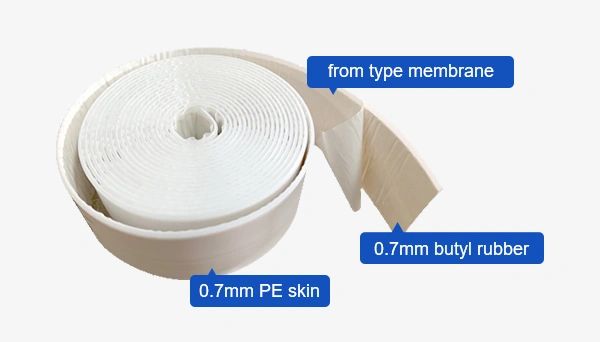

size of Caulking Tape
- Base Material: 0.7mm thick PE material (non-toxic PVC board)
- Adhesive Layer: Imported butyl rubber for strong adhesion and cohesion, resistant to peeling
- Total Thickness: 1.5mm
- Standard Length: 3.35m
- Standard Width: 22mm, 38mm, 60mm
TECHNICAL DATA OF CAULK STRIP
- Density: 23±2°C → 1.57g/cm³
- Heat Resistance: 120±2°C, 2h → No Flowing and no crackling
- Low Temperature Flexibility: -40°C, 72h → No-crackle on surface
- Elongation: 23±2°C, 250mm/min → ≥400
- Tensile Strength: 23±2°C, 50mm/min → ≥70
- Peeling Strength: 23±2°C, 300mm/min → ≥16
advantages
Crease design
Crease line in the middle, easy to use at vertical right angles
Easy cutting
Can be cut and used as needed
Oil & Stain Repellent
Oil & Stain Repellent
Non-staining, gently wipes clean
Usage steps
Steps
- Clean surface: Remove dirt and let dry
- Prepare tape: Peel backing and align with gap
- Apply tape: Press firmly while attaching
- Heat-seal: Use hair dryer to soften and press again
Corner Installation Method
- Cut diagonally: Slice halfway along the diagonal line
- Secure base: Firmly attach the bottom half first at corners
- Fold and trim: Press fold flat, then make diagonal cut
- Final press: Remove excess tape and press firmly
Right-angle Clipping Method
- Straight cut
- Overlap and align
- Diagonal tailoring
- Alignment is complete
PACKAGING OF CAULK TAPE for KITCHEN AND BATH
Packaging Details
If customers can’t find it, it doesn’t exist. Clearly list and describe the services you offer. Also, be sure to showcase a premium service.
Formula Characteristics of Kitchen/Bath Caulk Tape
▶Never cure, no crack.
Always maintains the viscosity and elasticity. Good tracing ability to material creep due to the thermal expansion and contraction or external force. It can maintain waterproof sealing effect for a long time.
▶Excellent weather resistance.
Acid and alkali resistance, UV resistance, high and low temperature resistance, no flow at 100℃ , keep flexibility and no crack at -40℃
▶Eco-freindly & Low VOC
No organic solvent.
Solid content ≥99.5%.
Pass ROHS test.
▶Convenient & Fast Construction
Just keep the surface clean and dry, then fix immediately after tearing off.
The adhesive layer of butyl waterproof roll material is mainly composed of high-quality butyl rubber. It has strong adhesion to metal, plastic, glass, wood and other materials.
The Performance Indicators of Self-adhesive Layer
Meet National Standards &Industry Standards
Some measured indicators are more than 50% higher than National Standard
01 GT/T23260 National Standard For Waterproof Membrane With Self-Adhesive Layer
02 GB/T23457 National Standard For Pre-paving Waterproof Roll Material
03 GB/T35467 National Standard For Wet Paving Waterproof Roll Material
04 JC/T942 Standard For Butyl Rubber Waterproof Sealing tape
01 High Level Quality Management
UDASING production process adopts automatic feeding and automatic production equipment. All batches of semi-finished products only can be extrusion coating production after passing the test. There are several quality control points in the process of extrusion coating, to fully guarantee the quality of size and flatness control. Our constant temperature laboratory is fully well equipped with complete testing equipment,which ensure to complete all the performance tests of butyl waterproof roll materials.
02 Efficient, Innovative And Customized
Our factory covers an area of 10000 ㎡, with 9 sets kneading machines, 10 sets automation extrusion coating line and a small equipment for only sample-making. With more than 20 years experience of research and development, Our team combined with Dalian University to built a Technology Innovation Center. By advantaged resources, We are establishing innovation system, adhering to the rigorous, standardized and highly efficient working principle. We are dedicated to provide our customers with stable quality, fast delivery, technical services and thoughtful butyl waterproof tape rolls or customized products.
