ALUMINUM FOIL waterproof butyl tape
●Product Overview: The butyl tape enables waterproof sealing andprevents the penetration of moisture into thebuilding structure.
●Application:
Sealing for:
- Dome lights & window frames
- Slanted glass roofs (greenhouses/sunrooms)
- Glass/plastic/metal butt joints
Structural sealing:
- Roof openings
- Gutter connections
- Awning-to-masonry joints
4-Layer Bonded Construction – Instant & Reliable Waterproofing
- Oxidation-resistant aluminum foil
- Square aluminum foil
- Butyl rubber layer
- Release liner
single-side waterproof aluminum foil tape
- Standard thickness: 1mm
- Width options: 5cm, 10cm, 20cm
- Length: 5m
Aluminum Foil Tape Technical Data
- Density: 23±2°C → 1.5±0.05g/cm³
- HEATING SAG: 120±2°C, 2h → No flow/cracking /deformation (Slip ≤ 2mm)
- Low Temperature Flexibility: -40±2°C, 1h → No cracking
- Needle Penetration: 23±2°C → 90±10mm
- Solid Content: 105±2°C, 3h → ≥98%
- Peeling Force(Maximum): 23±2°C, 300mm/min → ≥1.3N/mm
- Peeling Force After-Flooding: 23±2°C, 168h → ≥1N/mm
- Peeling Force After-Aging: 70±2°C, 168h → ≥1N/mm
single-side waterproof aluminum foil tape
- Excellent UV, weather and water resistance
- Effective barrier against rain and extreme weather conditions
- Maintains sealing performance in outdoor environments
WHERE DO WE USE IT?
Building waterproofing
Industrial/Vehicle Sealing
Industrial/Vehicle Sealing
Industrial/Vehicle Sealing
Industrial/Vehicle Sealing
Industrial/Vehicle Sealing
Household/Pipe Repairs
Industrial/Vehicle Sealing
Household/Pipe Repairs
ADVANTAGES

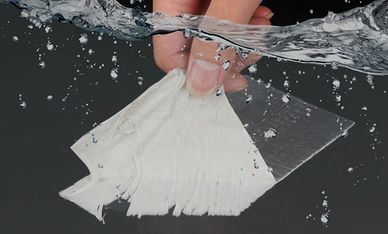

Water-resistant
Excellent waterproof performance with rain resistance
Fire-resistant
2 hours at high temperature, paste no flow, no cracking
Low-temperature resistant
Low-temperature resistant
After freezing at -40C, the tape has no cracks or breaks
UV-resistant
High-tack adhesive
Low-temperature resistant
Metallic aluminium foil reflects UV rays, insulates and cools down
Scratch-resistant
High-tack adhesive
High-tack adhesive
Resistant to outdoor wind and rain, not easy to wear and tear Weather resistant
High-tack adhesive
High-tack adhesive
High-tack adhesive
Strong self-adhesion, the longer the time, the deeper the penetration of polymer
TWO DESIGN OPTIONS FOR ALUMINUM FOIL BUTYL TAPE
A-No artwork on tapes just white color
Unprinted blank surface
B-Artwork on tapes
Printable customized promotional graphics
Usage steps
Steps
- Clean base: Remove debris and level surface
- Peel film: Detach release liner smoothly
- Apply tape: Align and press gradually
- Seal tight: Roll firmly for full bond
PACKAGING OF Aluminum Foil Repair Tape
Packaging Details
If customers can’t find it, it doesn’t exist. Clearly list and describe the services you offer. Also, be sure to showcase a premium service.
Formula Characteristics of Aluminum Foil butyl Tape
▶Never cure, no crack.
Always maintains the viscosity and elasticity. Good tracing ability to material creep due to the thermal expansion and contraction or external force. It can maintain waterproof sealing effect for a long time.
▶Excellent weather resistance.
Acid and alkali resistance, UV resistance, high and low temperature resistance, no flow at 100℃ , keep flexibility and no crack at -40℃
▶Eco-freindly & Low VOC
No organic solvent.
Solid content ≥99.5%.
Pass ROHS test.
▶Convenient & Fast Construction
Just keep the surface clean and dry, then fix immediately after tearing off.
The adhesive layer of butyl waterproof roll material is mainly composed of high-quality butyl rubber. It has strong adhesion to metal, plastic, glass, wood and other materials.
The Performance Indicators of Self-adhesive Layer
Meet National Standards &Industry Standards
Some measured indicators are more than 50% higher than National Standard
01 GT/T23260 National Standard For Waterproof Membrane With Self-Adhesive Layer
02 GB/T23457 National Standard For Pre-paving Waterproof Roll Material
03 GB/T35467 National Standard For Wet Paving Waterproof Roll Material
04 JC/T942 Standard For Butyl Rubber Waterproof Sealing tape
01 High Level Quality Management
UDASING production process adopts automatic feeding and automatic production equipment. All batches of semi-finished products only can be extrusion coating production after passing the test. There are several quality control points in the process of extrusion coating, to fully guarantee the quality of size and flatness control. Our constant temperature laboratory is fully well equipped with complete testing equipment,which ensure to complete all the performance tests of butyl waterproof roll materials.
02 Efficient, Innovative And Customized
Our factory covers an area of 10000 ㎡, with 9 sets kneading machines, 10 sets automation extrusion coating line and a small equipment for only sample-making. With more than 20 years experience of research and development, Our team combined with Dalian University to built a Technology Innovation Center. By advantaged resources, We are establishing innovation system, adhering to the rigorous, standardized and highly efficient working principle. We are dedicated to provide our customers with stable quality, fast delivery, technical services and thoughtful butyl waterproof tape rolls or customized products.
